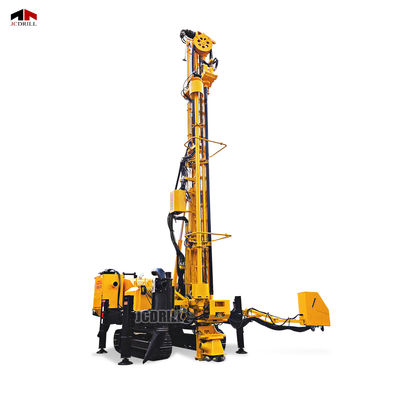

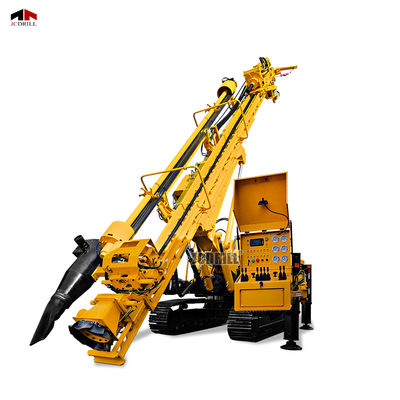

JCDRILL JCM200 Multifunctional Hydraulic Crawler Drilling Rig with Automatic Rod Changer

Name: JCDRILL JCM200 Multifunctional Hydraulic Crawler Drilling Rig with Automatic Rod Changer
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: JCM200
Price: 17,506.00 USD
Availability: InStock

Nazwa marki:	JCDRILL
Numer modelu:	JCM200
MOQ:	1 zestaw
Cena £:	negocjowalne
Warunki płatności:	L/C, T/T, D/A, D/P, ZACHODNIE ZACHODNIE
Zdolność do zaopatrzenia:	20 zestawów miesięcznie

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Pekin, Chiny

Orzecznictwo:

Power oceniany:

247 kW/ 330 KM

Średnica otworu:

Φ105 ～ φ273

Głębokość otworu:

45 m

Ciśnienie układu hydraulicznego:

22 Mpa

Prędkość obrotowa:

65--130 obr / min

Moment obrotowy:

65--130 r/min

Udar zasilający:

6,6 mm

Siła zacisku:

20 t

Waga:

21500 kg

Szczegóły pakowania:

Wymiar wysyłki: 1150 × 2850 × 3800 mm

Możliwość Supply:

20 zestawów miesięcznie

Podkreślić:

hydraulic crawler drilling rig

multifunctional rock drilling rig

automatic rod changer drilling rig

Opis produktu

JCDRILL JCM200 Multifunctional Hydraulic Crawler Drilling Rig with Automatic Rod Changer

Product Description

The JCM200 fully hydraulic multifunctional crawler drilling rig is a high-performance, all-in-one drilling solution. It is designed for DTH drilling, rock drilling, anchor drilling, auger drilling, exploration, and blasting hole projects.

Equipped with automatic rod changing system, integrated mud pump, and dust collector, the JCM200 offers unmatched efficiency, convenience, and versatility in the field. Supporting multiple drilling techniques--including down-the-hole (DTH) drilling, impact drilling, reverse circulation drilling, cutting drilling, auger drilling, and pipe-following drilling--this rig adapts to a wide range of geological conditions.

Powered by a robust Weichai WP10-330-247 engine and advanced hydraulic system, it ensures fast penetration, stable performance, and lower operating costs.

Whether your project involves geological survey, urban deep foundation anchoring, slope stabilization, geothermal wells, water wells, or blasting operations, the JCM200 delivers multifunctional drilling capability in one crawler-mounted platform, making it ideal for diverse construction, mining, and geotechnical projects.

Technical Specifications

Specification	Unit	JCM200
Drilling Performance
Drilling Diameter (DTH)	mm	Φ105-Φ273
Drill Depth (DTH by rod handler)	m	45
Drilling Angle	°	45-90
Feed System
Feed Stroke	m	8
Feed Force	KN	40
Lifting Force	KN	80
Rotating Torque	N*m	10,000
Rotation Speed	r/min	65-130
Clamp Range	mm	Φ76-Φ200
Clamping Force	T	20
Storage Rods	m	6 × φ102 × 6
Power System
Engine Brand		Weichai
Engine Power	kW	247 (WP10-330-247)
Walking Mechanism & Frame
Body Rotation	°	360
Traveling Speed	km/h	1.5
Gradeability	°	21
Ground Clearance	mm	300
Mud Pump		BW100
Dust Collector		Standard
Weight & Dimensions
Transportation Size	mm	1150 × 2850 × 3800
Drilling Size	mm	6800 × 2850 × 11500
Weight	Ton	21.5

Key Features

DTH Drilling Capability - Efficient penetration in hard rock formations using down-the-hole hammer.
Automatic Rod Changing Function - Reduces manual labor, improves safety, and shortens auxiliary time.
Multifunctional Integration - Integrated mud pump and dust collector, enabling one machine to perform multiple drilling projects.
Flexible Hydraulic Control - Adjustable torque, rotation speed, feed force, and lifting speed for various geological conditions.
High Efficiency & Cost Savings - Fast drilling speed, short auxiliary time, reduced fuel consumption, and lower operating costs.
Crawler Mobility with High-Leg Support - Easy loading, unloading, and excellent off-road performance on muddy or uneven terrain.
Reliable Power System - Strong Weichai WP10-330-247 engine with durable hydraulic components ensures long-term performance.

Applications

DTH Drilling - Efficient penetration in hard rock formations.
Rock Drilling - Slope stabilization, foundation reinforcement, and rock engineering.
Anchor Drilling - Tunnels, deep foundation pits, and grouting reinforcement.
Auger Drilling - Soil and foundation construction tasks.
Exploration Drilling - Geological and mineral exploration projects.
Blasting Holes - Mining, quarrying, and construction blasting operations.
Geothermal & Water Well Drilling - Ground source heat pumps and irrigation wells.

Frequently Asked Questions

Q1: Does the JCM200 support DTH drilling?

A1: Yes. The JCM200 is equipped with DTH drilling mode for efficient penetration in hard rock formations.

Q2: What makes the JCM200 multifunctional?

A2: The rig has automatic rod changer, integrated mud pump, and dust collector, allowing one machine to handle DTH, rock drilling, anchor drilling, auger drilling, exploration, and blasting.

Q3: What is the maximum drilling depth of the JCM200?

A3: Up to 45 meters (DTH by rod handler).

Q4: How efficient is the JCM200 in field operations?

A4: Full hydraulic control, automatic rod handling, and integrated systems ensure fast penetration, reduced auxiliary time, and lower operating costs.

Q5: Can the JCM200 be transported easily between sites?

A5: Yes. The crawler chassis with high-leg supports allows easy loading, unloading, and movement on muddy or uneven terrain.

Q6: Can the rig be customized for specific projects?

A6: Yes. Optional equipment such as foam pump, generator, or additional hydraulic tools can be installed according to project requirements.
