| Nazwa marki: | JCDRILL |
| Numer modelu: | JCM200 |
| MOQ: | 1 zestaw |
| Cena £: | negocjowalne |
| Warunki płatności: | L/C, T/T, D/A, D/P, ZACHODNIE ZACHODNIE |
| Zdolność do zaopatrzenia: | 20 zestawów miesięcznie |

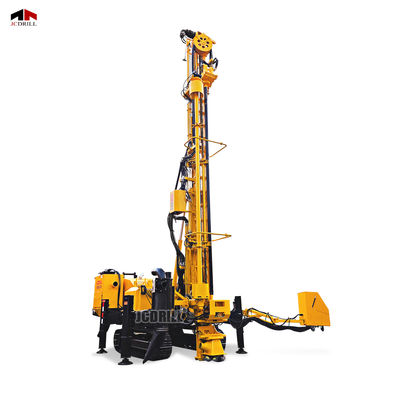

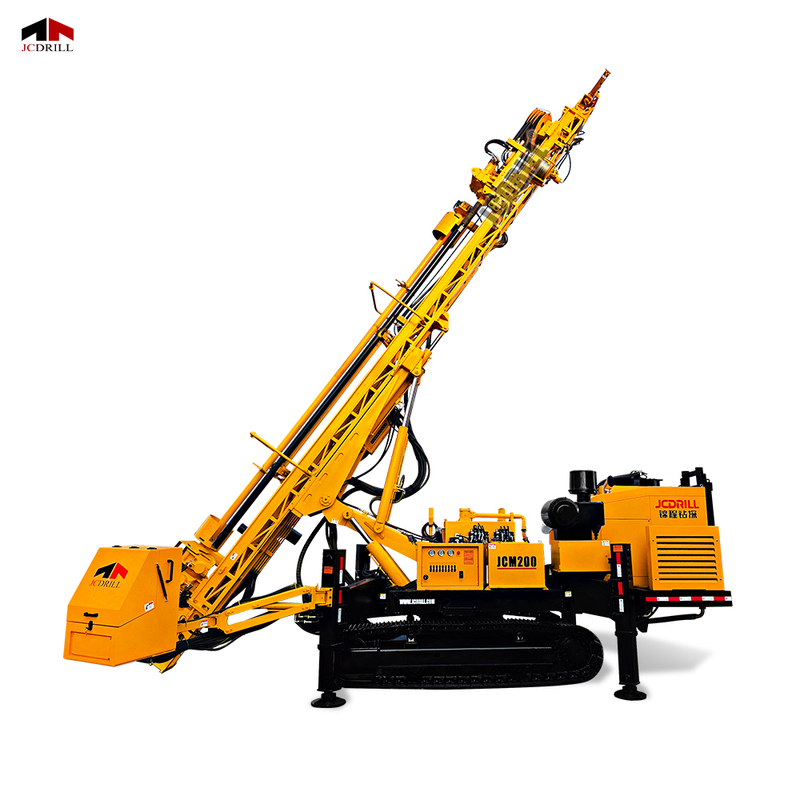

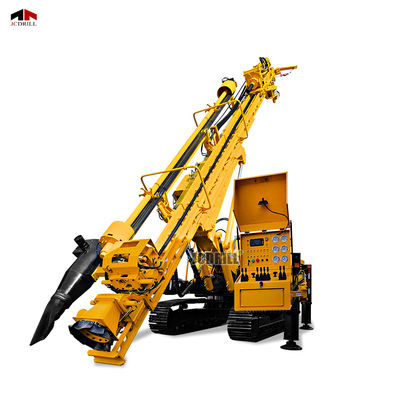

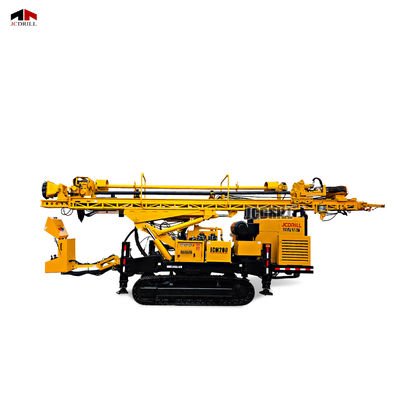

The JCM200 hydraulic crawler drilling rig is engineered as a powerful, multi-purpose drilling platform built for demanding geological and construction tasks. Designed for adaptability, it handles DTH drilling, anchoring, auger boring, rock drilling, exploration, and blasting hole projects with precision and reliability.
Featuring an automatic rod handling system, integrated mud pump, and efficient dust collection unit, the JCM200 ensures smooth operation, faster drilling cycles, and reduced on-site labor. Its advanced hydraulic control allows fine adjustment of torque, rotation speed, and feed pressure, enabling stable performance across complex formations.
Driven by a 247 kW Weichai WP10-330-247 diesel engine, the rig delivers consistent power and efficiency while minimizing fuel consumption. The crawler chassis with full 360° rotation and high-leg supports guarantees excellent maneuverability, making it suitable for both confined urban job sites and rugged mountain terrain.
The JCM200 is ideal for geological surveys, slope protection, deep foundation reinforcement, geothermal wells, water wells, and mining blast holes--a single rig that meets multiple drilling demands with ease and efficiency.
| Drilling Performance | ||
|---|---|---|
| Drilling Diameter (DTH) | mm | Φ105-Φ273 |
| Drill Depth (DTH by rod handler) | m | 45 |
| Drilling Angle | ° | 45-90 |
| Feed System | ||
| Feed Stroke | m | 8 |
| Feed Force | KN | 40 |
| Lifting Force | KN | 80 |
| Rotating Torque | N*m | 10,000 |
| Rotation Speed | r/min | 65-130 |
| Clamp Range | mm | Φ76-Φ200 |
| Clamping Force | T | 20 |
| Storage Rods | m | 6 × φ102 × 6 |
| Power System | ||
| Engine Brand | Weichai | |
| Engine Power | kW | 247 (WP10-330-247) |
| Walking Mechanism & Frame | ||
| Body Rotation | ° | 360 |
| Traveling Speed | km/h | 1.5 |
| Gradeability | ° | 21 |
| Ground Clearance | mm | 300 |
| Mud Pump | BW100 | |
| Dust Collector | Standard | |
| Weight & Dimensions | ||
| Transportation Size | mm | 1150 × 2850 × 3800 |
| Drilling Size | mm | 6800 × 2850 × 11500 |
| Weight | Ton | 21.5 |
