| Nazwa marki: | JCDRILL |
| Numer modelu: | JC660 |
| MOQ: | 1 |
| Cena £: | negocjowalne |
| Warunki płatności: | L/C, D/A, D/P, T/T, ZARZĄDENIE WESTOLA |
Efficient • Energy-Saving • Environment-Friendly

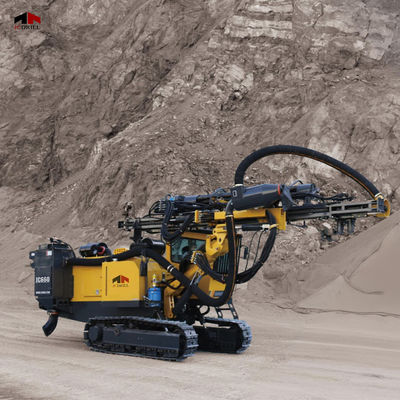

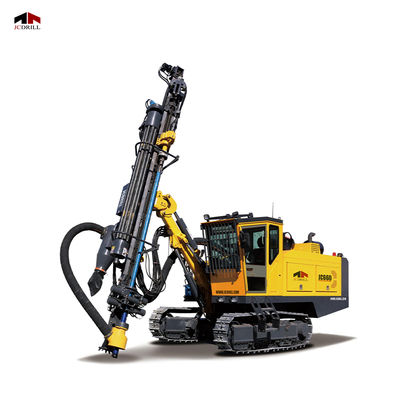

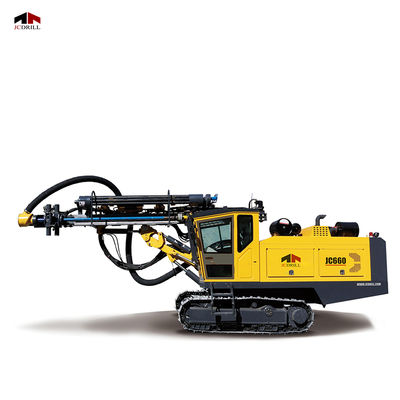

The JC660 integrated hydraulic DTH drilling rig is a high-performance machine designed for open-pit mining, quarrying, and construction drilling. It can drill blast holes from 90 mm to 140 mm in diameter.
Equipped with an imported BSC (USA) two-stage screw air compressor, the JC660 ensures stable pressure and airflow, achieving high penetration speed with reduced energy consumption. Its main structure uses Q345 high-strength steel for exceptional durability under harsh conditions.
| Model | JC660 |
|---|---|
| Drilling Diameter | 90-140 mm |
| Drill Rod Size | 76 mm × 4000 mm |
| Rotation Speed | 0-140 rpm |
| Rotation Torque | 2100 N*m |
| Feed Force | 17 kN |
| Feed Speed | 30 m/min |
| Air Compressor | BSC (Imported from USA) |
| F.A.D | 15 m³/min |
| Air Pressure | 18 bar |
| Engine Manufacturer | YUCHAI |
| Engine Power | 191 kW |
| Dimensions (L × W × H) | 10,000 × 2,800 × 3,300 mm |
| Weight | 13,000 kg |
